CHAPTER 12: DEBUGGING
USING SIGNALPROBE
ALTERA CORPORATION INTRODUCTION TO QUARTUS II ■ 205

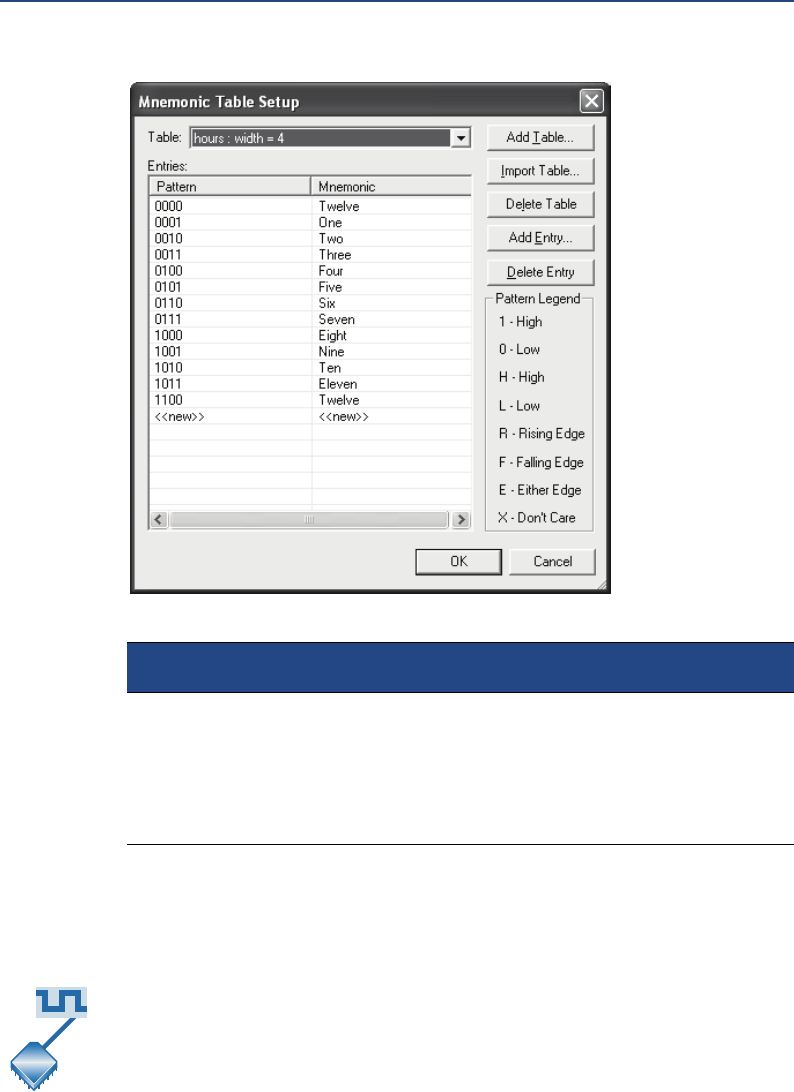

Figure 6. Mnemonic Table Setup Dialog Box
Using SignalProbe
The SignalProbe feature allows you to route user-specified signals to output
pins without affecting the existing fitting in a design, so that you can debug
signals without needing to perform another full compilation. Starting with a
fully routed design, you can select and route signals for debugging through
I/O pins that were either previously reserved or are currently unused.
f
For Information About Refer To
Using the SignalTap II Logic Analyzer “Design Debugging Using SignalTap II
Embedded Logic Analyzer,” in the
Quartus II Handbook, vol. 3, on the Altera
web site
“Overview: Using the SignalTap II Logic
Analyzer” in Quartus II Help
