PC-Duo Master Guide
58

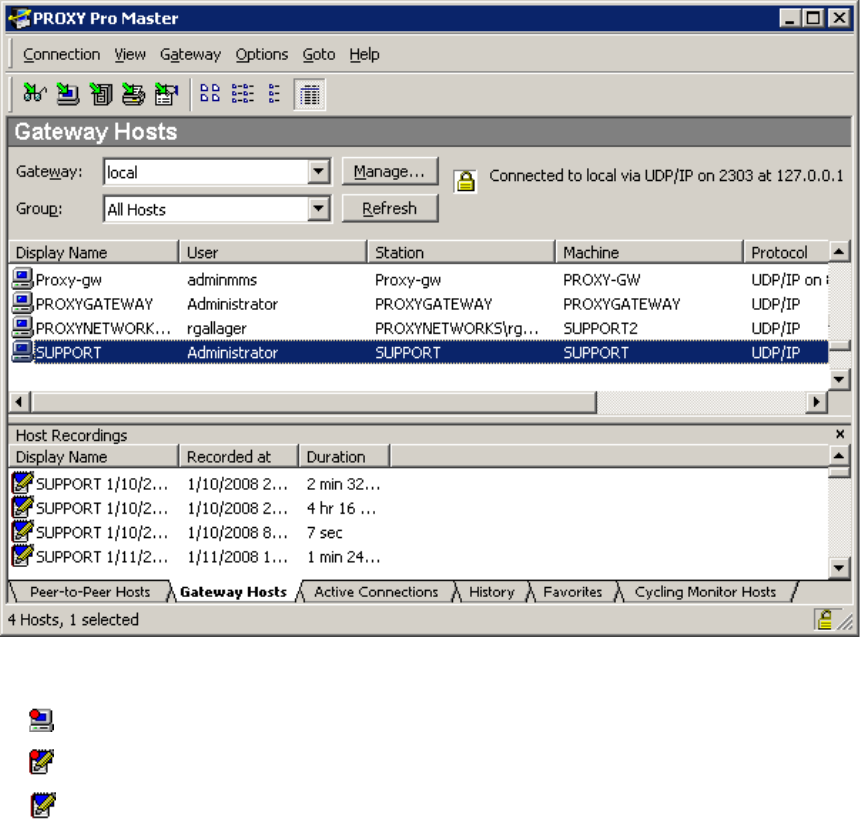

The following icons indicate the status of a recording:
in the Gateway Hosts list indicates a Host on which a recording is in process.
in the Host Recordings list indicates a recording in process.
in the Host Recordings list indicates a recording that has finished.
Adjust the time span for recording
When a recording is in process you can adjust its recording time.
1 In the Host Recordings list, select each recording for which you want to change the
recording span.
2 Right-click and choose Adjust Recording Time.
3 In the Record Selected Host(s) window, select a different Recording Span in minutes
and click OK.
Stop recording
A recording can be stopped at any time:
1 In the Host Recordings list, select each recording that you want to stop.
2 Right-click and choose Stop Recording Time or choose Connection > Stop Recording
from the menu. The recording stops immediately.
