PC-Duo Master Guide
224
Playback options
Recordings can be played back from the following source locations:
From the Gateway, which streams the recording in real-time over a network
connection to the Playback window.
From a recording file that has been saved with the .PrxRec extension to the local
drive.
From any standard web server, which streams the recording in real-time over HTTP or
HTTPS to the Playback window.
Play a recording from the Gateway
To play a recording from the Gateway:
1 Select the recording you want to play.

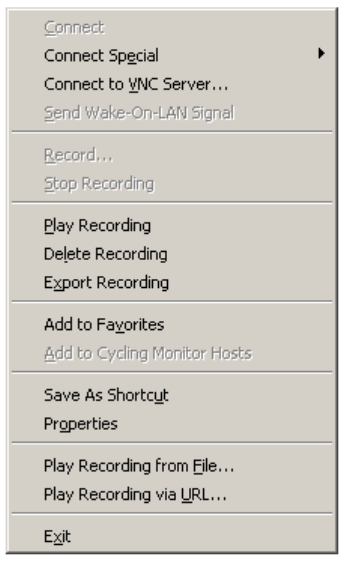

2 Right-click the recording and choose Play Recording or choose Connection > Play
Recording from the menu.
The Playback window opens and the recording begins to play.
Play a recording from a local disk file
By default, recordings are stored by the Gateway at a location configured by the Gateway
Administrator (which may or may not be accessible through a network share). If
